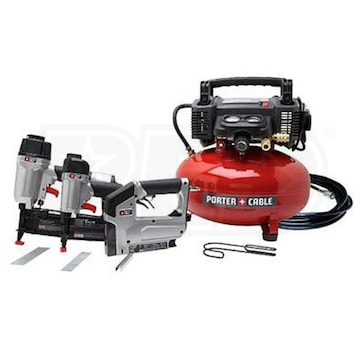

- Our 150 psi 6-Gallon Oil-Free Pancake Compressor is constructed with a pancake style tank for stability, with a water drain valve and tough rubber feet. The high-pressure design optimizes air tool performance, delivering 2.6 SCFM at 90 psi for quick recovery time.
- View and Download Porter-Cable C2002 instruction manual online. Maintenance-free pump. C2002 Air Compressor pdf manual download.
Every 160 Hours of Operation:
1. Check drive belt tension; adjust if necessary.
Power tool manuals and free pdf instructions. Find the user manual you need for your tools and more at ManualsOnline. Page 8 of Porter-Cable Air Compressor C2002 User Guide ManualsOnline.com.
2. Inspect air lines and fittings for leaks; correct as necessary.
3. Check the alignment of the motor pulley to the flywheel. If necessary, align to
within 1/32 inch on center line.
Each Year of Operation or if a Problem is Suspected:
Check condition of air compressor pump intake and exhaust valves. Replace if
damaged or worn out.
SERVICE INSTRUCTIONS
Air Filter - Inspection and Replacement
NOTE
Keep the air filter clean at all times. Do not operate the air compressor
with the air filter removed.
A dirty air filter will not allow the air compressor to operate at full capacity. Before
you use the air compressor, check the air filter to be sure it is clean. If it is dirty,
replace it with a new filter.
Oil - Checking and Changing
Overfilling with oil will cause premature air compressor
pump failure. Do not overfill.
1. Check oil level in air compressor crankcase before each use. The oil level
should be even with the top of the fill hole and must not be allowed to be lower
than 3/8' from the top (6 threads) at any time.
2. See Routine Maintenance Schedule for oil change scheduling.
3. Remove the oil fill and drain plugs. Collect the oil in a suitable container.
4. Replace the oil drain plug and refill the crankcase with recommended oil.
Note
It is important to maintain the proper oil level. A low oil level reduces
proper cylinder wall lubrication and increases ring wear.
5. Replace the oil fill plug.
6. Start the air compressor unit and run for several minutes. Shut the air
compressor down and check the oil level. If necessary, add more oil.
Recommended Oil
Room or
(API SG/CD
Ambient
Heavy Duty)*
Temperature
SAE 10
Below 20
o
F
SAE 20
Porter Cable Air Compressor User Manual
Above 32
o
F
Viscosity Chart
Oil Capacity
Oil capacity is approximately 16 fluid ounces. The oil level should be even with the
top of the fill hole and must not be allowed to be lower than 3/8' from the top (6
threads) at any time.
Oil Type
An air compressor grade non-detergent oil should be used. Most automotive
detergent oils cause excessive carbon buildup and should not be used. Do not use
synthetic oil for the first 300 hours. All units should be broken in on petroleum
based oil.
